    TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed 1-300Rpm

    Ask Lasest Price
    Model Number : JTT-1700-2V2R
    Brand Name : JINTONG
    Price : $61,000.00/pieces 1-2 pieces
    • Product Details
    • Company Profile

    TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed 1-300Rpm

    TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed Rpm 1 300 Rpm


    Product Description

    TR glasses spectacle frame two color injection molding machine 170T

    Clamping Force: 170T

    Max Injection Weight: 130g

    1. Vertical clamping, vertical injection, easy to change color or material, well mixed, rapid temperature rise
    2. Different injection combination can be chosen to reach best productivity and less power loss according to different shot weight
    3. One molding for dual-color/material embeded products, multi-sation rotary design, stable rotation, precise position, easy to put and pick out products
    4. Injection system can be used individually
    5. can use both for two color/material and one color/material machine

    Model
    JTT-1700-2V2R
    injection system
    Screw Diameter
    mm
    A25 B25
    Injection Pressure
    kg/cm2
    3125 3125
    Theoretical Shot Volume
    cm3
    68 68
    Injection Rate
    cm3/sec
    75 75
    Screw Stroke
    mm
    140
    Screw Speed
    rpm
    0--300
    Nozzle Contact Force
    tons
    4.6
    Number of Temperature Control
    A4 B4
    clamping system
    Clamping Force
    tons
    A85 B85
    Opening Force
    tons
    4.6
    Min Mold Height
    mm
    200
    Opening Stroke
    mm
    300
    Max Open Daylight
    mm
    500
    Mold Dimension
    mm
    360*360
    Rotary Table Diameter
    mm
    1080
    Ejector Force
    tons
    2
    Ejector Stroke
    mm
    75
    oil pressure system
    Max Hydraulic Pressure
    kg/cm2
    140
    Pump Output
    L/min
    100
    Oil Reservior Capacity
    L
    200
    Cooling Water Consumption
    /hr
    800-1000
    Pump Moter Power
    KW
    A14 B14
    Rotary Table Moter Power
    KW
    1.8
    Ejector Power
    KW
    2.2
    Barrel Heating Power
    KW
    A6.6 B6.6
    Total Power
    KW
    45.2
    OTHER
    Machine Dimension
    m
    2.85*2.35*2.8
    Machine Weight
    tons
    9

    Main Features

    Don’t ejector mold after finishing first injection system, and direct transfer to second injection system, and molding after second injection, without shrink or excessive glue
    Optional automatic device for taking in or out to make unmanned automation equipment
    Use special central shunt valve design, single direction rotary to avoid problems with water cooling lines.

    Certifications
    TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed 1-300Rpm
    TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed 1-300Rpm
    TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed 1-300Rpm
    TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed 1-300Rpm

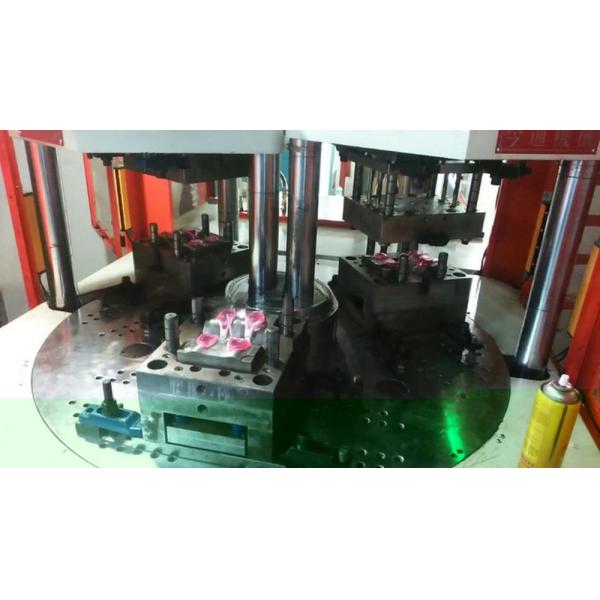

    Detailed Images
    TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed 1-300Rpm
    TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed 1-300Rpm
    TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed 1-300Rpm
    Our Service
    TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed 1-300Rpm

    PRODUCT ADVANTAGE

    Energy-saving: save 30% energy compared to similar products by using SIFU pump system

    High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

    Low heating: save 55% cooling water quantity at least compared to similar products

    Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

    Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

    TR Glasses Spectacle Frame Two Color Injection Molding Machine 170T With Screw Speed 1-300Rpm

    SERVICE ADVANTAGE


    17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.
