55T Vertical Plastic Injection Molding Machine With Rotary Table Offered By Guangdong

Product Description

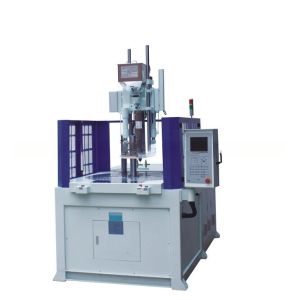

Vertical rotary injection molding machine JTT-550R in Guangdong factory

Clamping Force: 55T

Injection Weight: 80-141g


Vertical clamping, vertical injection

Easy to set torque , speed, deceleration distance and stand number segmentation

Computer programme control rotary table direction , forward-rotating, reverse-rotating, forward and reverse alternative rotating.

Optional energy-saving motor

	Model		JTT-550R
Injection system	Screw Diameter	mm	40
		Injection Pressure	kg/cm2	1260
		Theoretical Shot Volume	cm3	170
		Injection Rate	cm3/sec	113
		Screw Stroke	mm	140
		Screw Speed	rpm	150
		Heating Capacity	kw	5.3
Clamping system	Clamping Force	tons	55
		Opening Force	tons	8.9
		Min Mold Height	mm	200
		Opening Stroke	mm	200
		Max Open Daylight	mm	400
		Mold Dimension	mm	370*450
		Rotary Table Diameter		1080
		Ejector Force	tons	1.8
		Ejector Stroke	mm	60
Other	Motor Power	kw	7.5
		Sliding Table Stroke	mm	—
		Machine Dimension	m	2.6*1.8*2.85
		Machine Weight	tons	3

Main Features

1) vertical clamping, vertical injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity

Certifications

Detailed Images

Our Service

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.

Packing & Delivery
