250T Vertical Plastic Injection Molding Machine JTT-2500R With Max Daylight 650/710mm

Product Description

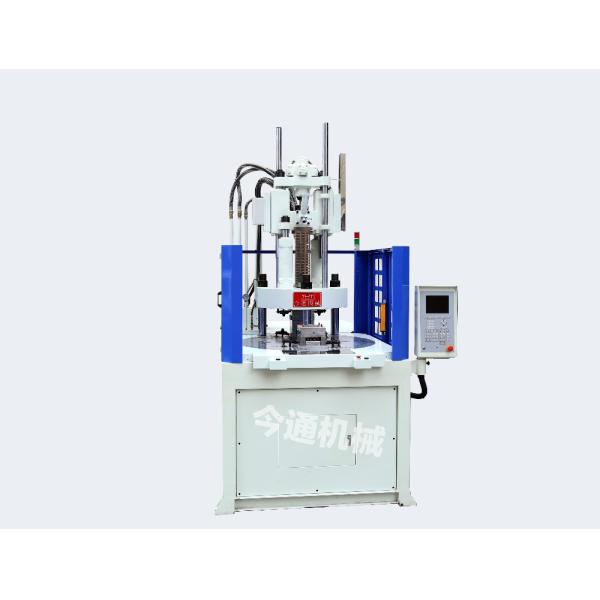

Vertical rotary injection molding machine JTT-2500R

Clamping Force: 250T

Max injection Weight: 836g


Vertical clamping, vertical injection Easy to set torque , speed, deceleration distance and stand number segmentation SERVO motor control rotary table, forward-rotating, reverse-rotating, forward and reverse alternative rotating. 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity machine station number decide lower mold number, eg: 3 staitons have one upper mold 3pcs lower mold Optional energy-saving motor

	Model		JTT-2500R
injection system	Screw Diameter	mm	55 60 65
		Injection Pressure	kg/cm2	2087 1754 1494
		Theoretical Shot Volume	cm3	665 792 929
		Max Shot Weight	g	599 713 836
		Injection Rate	cm3/sec	202 243 285
		Screw Stroke	mm	280
		Screw Speed	rpm	152
		Heating Capacity	kw	20
clamping system	Clamping Force	tons	250
		Opening Force	tons	26.4
		Min Mold Height	mm	300
		Opening Stroke	mm	450
		Max Open Daylight	mm	750
		Mold Dimension	mm	850*450
		Rotary Table Diameter	mm	1800
		Ejector Force	tons	4.6
		Ejector Stroke	mm	100
other	Motor Power	kw	33.8
		Machine Dimension	m	3.8*2.55*4.12
		Machine Weight	tons	13.6

Main Features

1) vertical clamping, vertical injection,

2) clamping force, injection weight and shot speed can be changed according to actual demand.

3) 2 stations, 3 stations , multi-station(one up die, two or four down die), easy for operate insert parts, improve productivity

Certifications

Detailed Images

Our Service

PRODUCT ADVANTAGE

Energy-saving: save 30% energy compared to similar products by using SIFU pump system

High efficiency: SIFU motor have max speed 2200/min to increase oil pump output and improve more than 15% productivity speed

Low heating: save 55% cooling water quantity at least compared to similar products

Low noise: optimize motor working condition with imported bearing and oil pump to reduce 15-20db working noise

Precision: use completely close-cycle control with pressure sensor and motor rotary encoder to improve product consistency

SERVICE ADVANTAGE

17 years of customer service experience and summarizing customer feedback, Jintong develop a systematic and standardized service process, and also establish 24 hour response mechanism to wensure timely solve customers problems and offer perfect service to customers as soon as possible.

Packing & Delivery
